Rounded Corners on Web Part Zones

Curiously, one of my more popular blog posts is about putting rounded corners on things in SharePoint. It does seem that this is a pretty popular question. As a side note, Heather Solomon has a post about doing this for web part titles, though I followed Madalina’s instructions.

Anyway, one design requirement that come up repeatedly is rounded borders on Web Parts. I swear, it comes up with every design – and it isn’t possible (although I have an idea – more on that tomorrow). What you can do, though, is have a rounded border about the entire web part zone… Continue reading “Rounded Corners on Web Part Zones”

Advertisements
Rounded Corners on Web Part Zones

Webpart Titles not shown in WebPartZone…

Curious problem this – I had a web part zone where all web parts being put in it would be displayed without their titles. Didn’t matter if you manually went and turned on the chrome to show a title – that setting never saved, and the web parts didn’t ever have a title.

After tracking through all the page’s code, I found that when I set the WebPartZone’s ID to be ‘Main’ then my web parts ceased functioning correctly; their titles disappeared. If I set the ID back to ‘Left’, then all was fine.

I don’t know why this happens, but certainly using a different ID for my zone fixes it. If anyone knows why this actually happens, please let me know.

Webpart Titles not shown in WebPartZone…

Putting CEWP into a page in ONET.XML

When you provision sites you can provide various pages (normal pages, not just publishing ones!) However, what if you want to put web parts onto those pages?

Well, you could build multiple pages for your different site configurations. Or you could use a feature receiver to add it programmatically. Or, you could add it via your site configuration. Continue reading “Putting CEWP into a page in ONET.XML”

Putting CEWP into a page in ONET.XML

What is MSOLayouts_MakeInvisibleIfEmpty()

I was looking through the code of SharePoint’s Blank Web Part page layout, and I kept finding elements called _invisibleIfEmpty. Now, I’d noticed that some page layouts, such as the Splash page layout had borders on their web part zones which were only shown if the zone contained a web part. I was interested in how this might work. People keep asking for web parts with borders, preferrably ones with rounded corners. Continue reading “What is MSOLayouts_MakeInvisibleIfEmpty()”

What is MSOLayouts_MakeInvisibleIfEmpty()

Putting a web part zone below the quick navigation menu

Previously, I’d been asked to put a web part zone below the quick nav for SharePoint pages. As it transpires, you can’t put web part zones on master pages – but there is no reason why you shouldn’t put one in an asp:Content control (indeed, that’s how you have to place them on pages). And I’d noticed this PlaceHolderLeftActions content placeholder. So I figured, why not put my web part zone into that?

To do this, I need to modify the page that I want this zone to appear for. It could be a Page Layout for publishing pages, or just a normal default.aspx on a team site. I’m using a blank site for this. I simply added a Content control, and dropped a web part zone into it:

<asp:Content ContentPlaceHolderId="PlaceHolderLeftActions" runat="server">
<WebPartPages:WebPartZone id="g_5AD648BF053647678E80875B48A60593" runat="server" title="Zone 1">
</WebPartPages:WebPartZone>
</asp:Content>

I saved the changes, and now when I go to edit that page I see:

Great! I can drop in web parts – here I’ve used a summary links web part:

But you may find the styling leaves something to be desired – but you can design that in!

Sure, you could find that you have to do this a lot of times if you want to do this for many pages, but if you’re using the publishing features, you only have to modify each Page Layout once, which is very handy.

Putting a web part zone below the quick navigation menu

So can you put Web Part Zones in Master Pages, or what?

A customer wants to put a web part zone below the quick nav in their SharePoint site – not an unusual request. Naturally, I cracked open SharePoint Designer, and tried adding a web part zone – and this is what I got:

I tried to understand why this would be the case, but quite simple, couldn’t. Naturally, I then referred to the documentation (!) on MSDN. It had mentioned this at the bottom of the page.

You cannot add Web Parts in zones to a master page. You can add static Web Parts (parts outside of a zone) to a master page, but you cannot add dynamic Web Parts to master pages.

Okay, that seems clear enough – I get why you could add static web parts to a master page, but not dynamic – but what about the web part zones themselves?

You can add zones to master pages and later add Web Parts to the zone in the browser, but the Web Parts are associated with the content page.

Yup, that seems fair enough. I get that in theory. So why in practice does SharePoint Designer say I can’t?

I began looking around to see if others had tried this – and found interesting contradictions. Mirjam says you can’t – but does point out that you can override the standard quick nav in your page layout, and put a web part zone into that. Microsoft SharePoint Step by Step seems to say the same thing. Yet ASP.NET would support this just fine, and as noted the MSDN docs say it should work.

Okay, one thing left to do – actually try it. SharePoint Designer won’t let me add the web part zone by ‘drag and drop’, but I can code one by hand:

And it renders in SharePoint Designer:

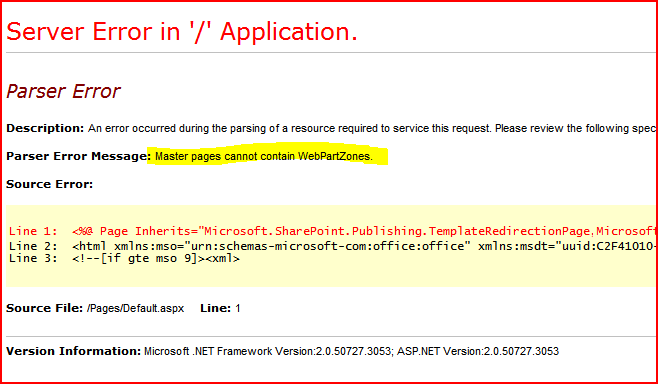

But when you try and use the page:

Well, I ain’t going to argue with a parser error – it looks like you really can’t do this, despite the MSDN docs.

So can you put Web Part Zones in Master Pages, or what?

You can do a lot with page layouts…

I’ve been blogging a fair bit lately about Page Layouts – how they affect styles to hide bits of the page, how they are used to replace breadcrumbs and the like – but you can do a heck of a lot with them.

Quite a lot of your default master page is in ContentPlaceHolder controls. Those ContentPlaceHolder controls have default content – but your page layout can define Content controls which place content into those placeholders, overriding them. Of course, you still need to have all of the appropriate controls on a page – just removing the ‘Site Actions’ menu for everyone isn’t a good idea – but you can do a lot.

This sort of came up at the last SharePoint User Group meeting – Colin Byrne was demonstrating Silverlight in SharePoint (which apparently doesn’t work all that well yet, but shows promise). One of the demos he has showed replacing the left navigation with a Silverlight control, but used a neww Master Page do to that. I thought of a demo I’d done recently where I’d done similar – but with a Page Layout. I used this to replace the left navigation menu with a Web Part Zone:

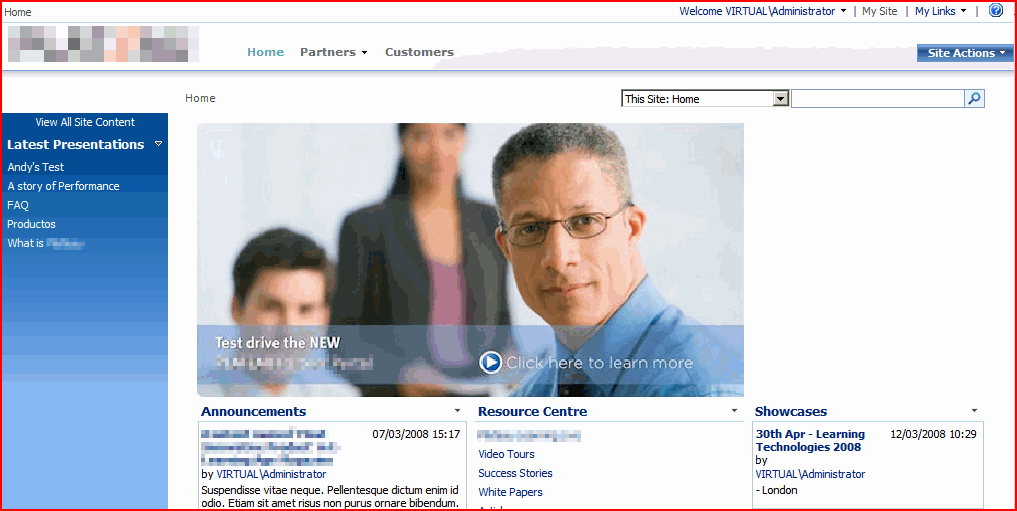

Normal View

Page Extensively Modified by a Page Layout

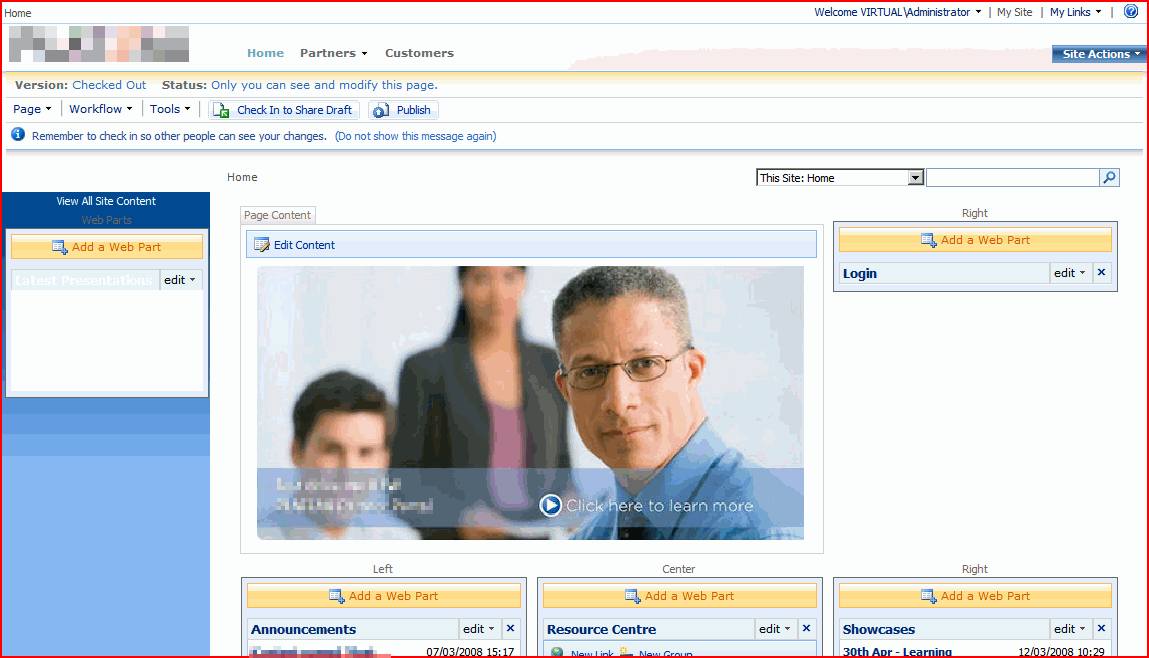

Edit View

Page Extensively Modified by a Page Layout - Edit View

Believe it or not, this is actually the default master with a particular Page Layout that I made, and the ‘Simple’ theme applied. Actually, there are lots of bits of the page modified by the Page Layout. The ‘Site Actions’ menu and Top Navigation Bar have been moved up, for example. The Left navigation has been replaced by a Web Part Zone, and I’ve dropped a Content Query Web Part in there for a giggle. And the Search box has been moved down the page too.

You could do all of this with a Master Page of course – and in real life, you’d probably want to for most of those modifications. For some things, though, like replacing certain navigation controls (which is what some of the out-of-box page layouts do with title breadcrumbs) then I think that a page layout might be exactly what you want – so that you can have different forms of navigation for different pages using the same Master Page.

Anyway, I was surprised by how easy it was to do this. Given that the Master Page defines default content, much of what I did was just copy that default content into the Content control for the location that I wanted to put the control into – and voila!

You can do a lot with page layouts…
